Corten Steel Flat Top Edging How To

corten garden edging
Cor-ten-steel.com.au ships steel garden edging all over Australia
All edging and corten accessories shipped in flat packs

Metal garden edging is quick and easy to install

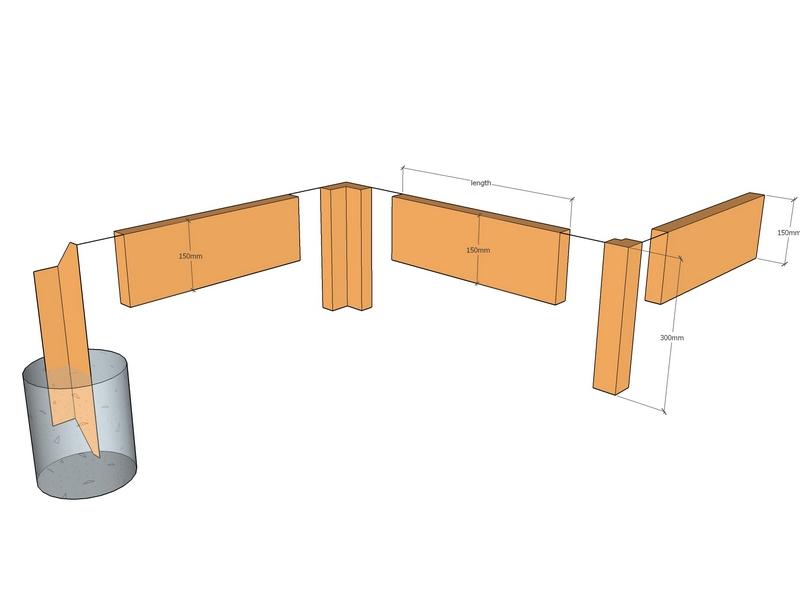

corten flat top edging parts

Edge height

Around 1/3rd of the edging may be buried, which provides additional support to the edge

Full tree rings do not need to be buried at all.

corten flat top parts layout

pre-made corten edging curved sections

Preformed curves and corners

Use preformed corners and curves to create unique garden layouts

Quarter, Eighth and Half circles, plus square corners are all in stock

Preformed curves and corners

Use preformed corners and curves to create unique garden layouts

Quarter, Eighth and Half circles, plus square corners are all in stock

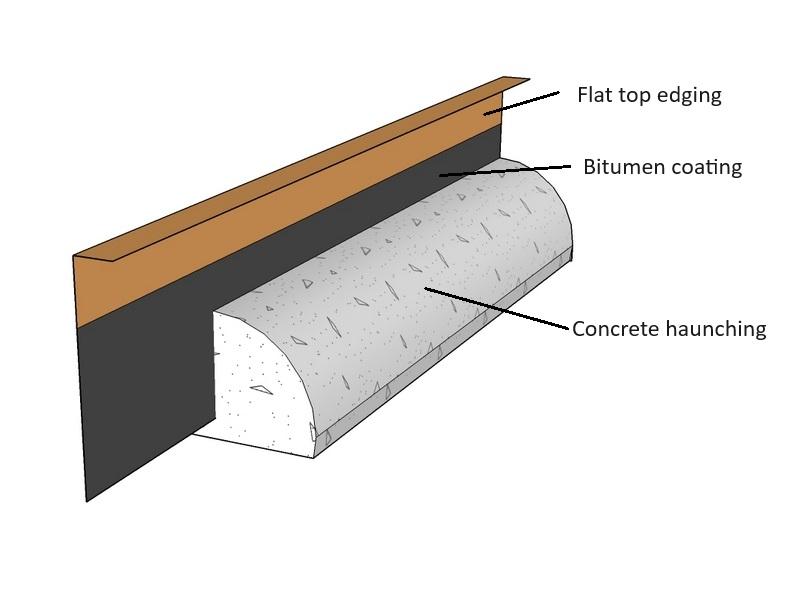

corten flat face edging haunched

Haunching commercial applications

In edging applications with anticipated high traffic loadings, haunching is suggested to provide more support

Coating buried corten with bitumen paint will increase the lifespan

corten edging curved set in concrete haunching

Haunching tight radii

In edging applications with anticipated high traffic loadings, haunching is suggested to provide more support

Coating buried corten with bitumen paint will increase the lifespan

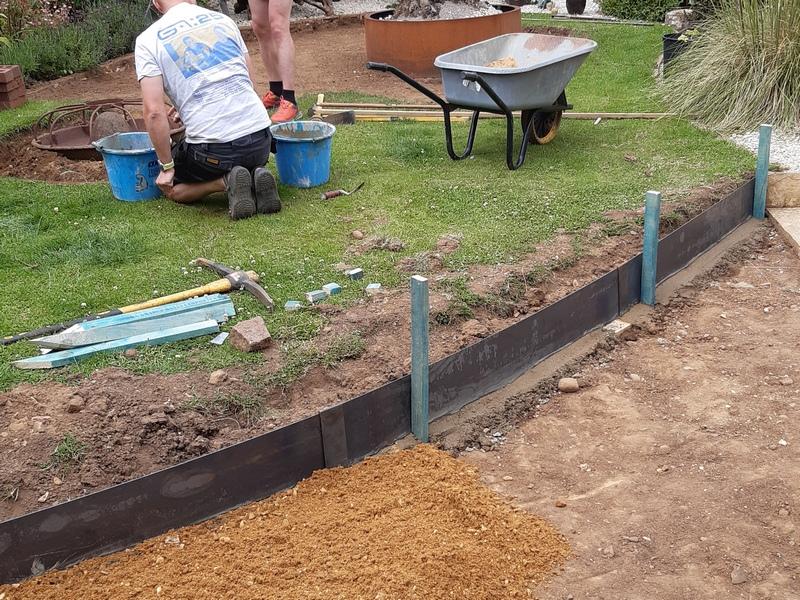

corten edging staked while hauncing sets

Temporary stakes while haunching sets

Coating buried corten with bitumen paint will increase the lifespan

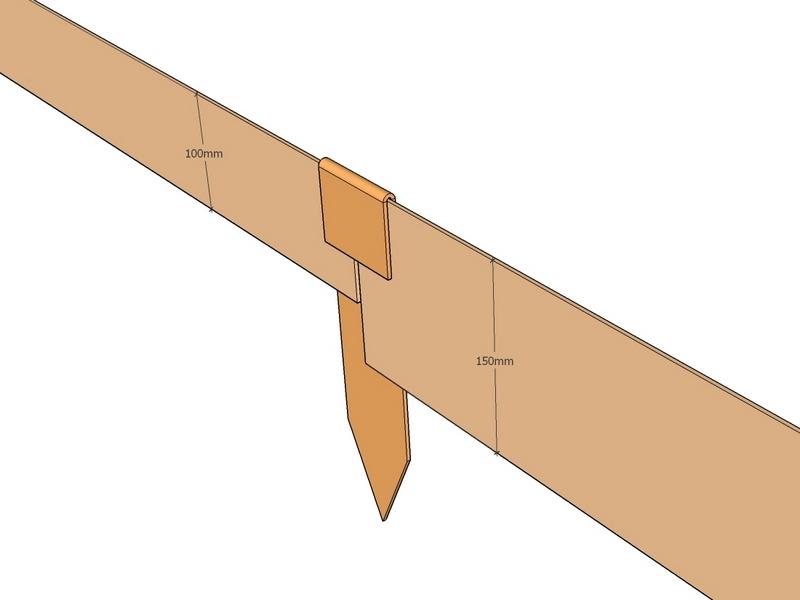

Different height edging

Joining different height edging behind peg joiner

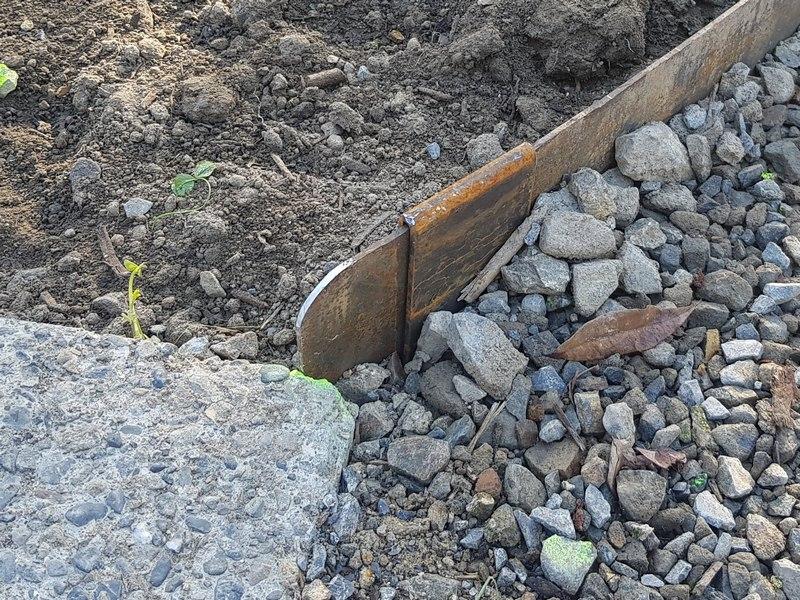

Rounding off termination

Using an angle grinder to round the corten end

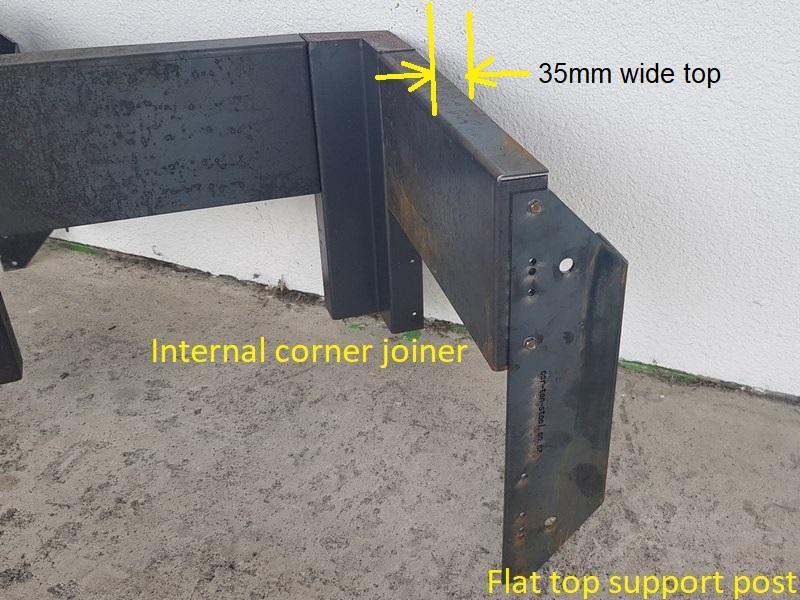

Corten flat top edging 250mm tall

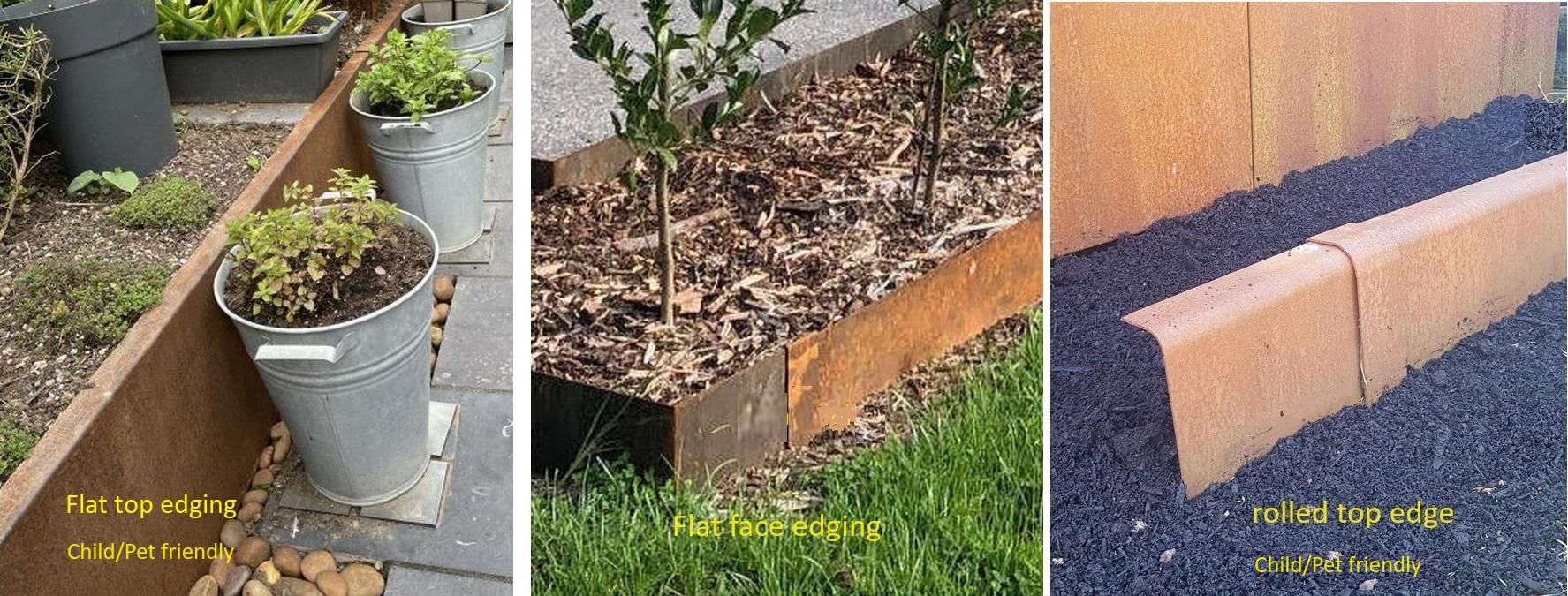

Flat top edging option

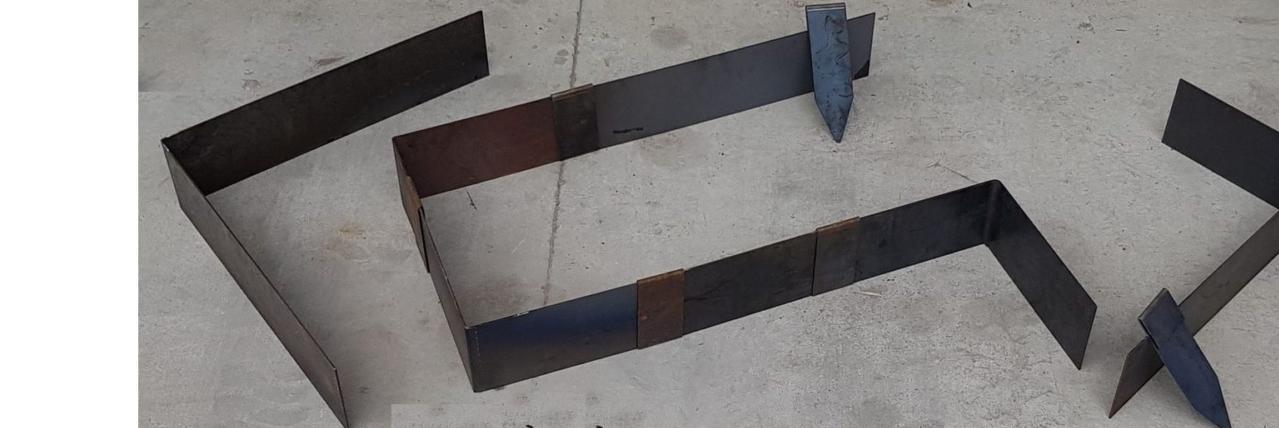

corten edging with premade quarters and half circles

Combination of preformed shapes

Coating buried corten with bitumen paint will increase the lifespan

1st Nov 2024
