Corten Steel Flat Face Edging How To
Cor-ten-steel.co.uk ship steel garden edging all over the Aus
Metal garden edging is quick and easy to install and shipped flat packed

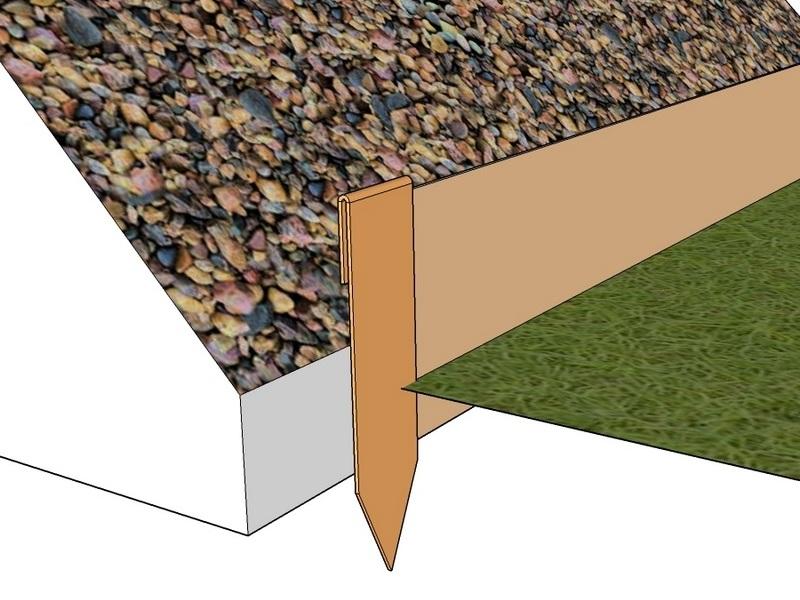

Edge Height
Around 1/3rd of the edging may be buried, which provides additional support to the edge.
Flat Face Peg Length
Pegs should be at least 100mm longer than your selected edging, in softer soils use longer pegs
Preformed Curves
Use preformed corners and curves to create unique garden layouts
Preformed curves and corners
Use preformed corners and curves to create unique garden layouts
Quarter, Eighth and Half circles, plus square corners are all in stock
100mm tall edge 3.0mm thick flat face prices
150mm tall edge 3.0mm thick flat face prices
200mm tall edge 3.0mm thick flat face prices
300mm tall edge 3.0mm thick flat face prices
100mm tall edge 6.0mm thick flat face prices
150mm tall edge 6.0mm thick flat face prices
200mm tall edge 6.0mm thick flat face prices
300mm tall edge 6.0mm thick flat face prices
Concrete Haunching
For high stress applications, concrete haunching adds strength.
Haunching example
Flat Top can not be bent on site, you will need to swap to Flat Face edging
Temporary stakes, until concrete sets
For gentle curves, Flat Face edging can be bent into gentle curves. Flat Top can not be bent.

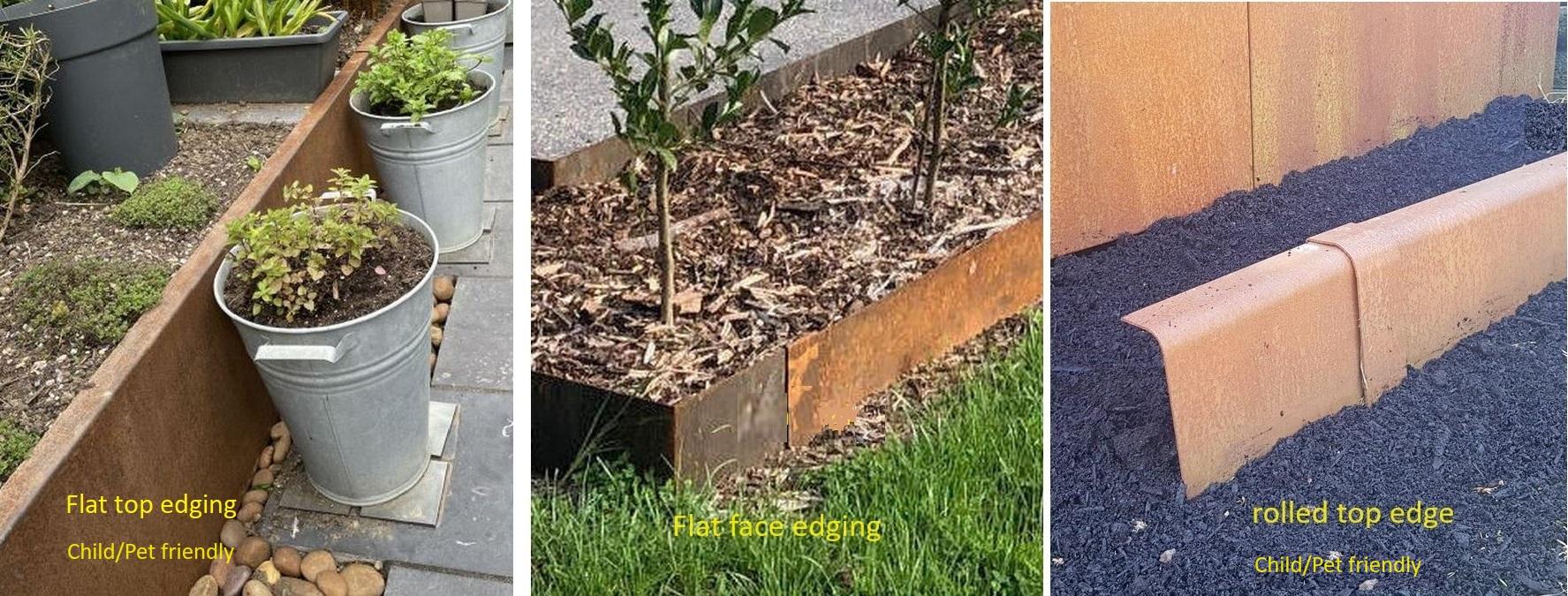

Corten edging available in
100mm, 150mm, 200mm, 300mm tall
Small gaps at joins will be hidden by pegs
Corten is supplied as “blue steel” unweathered, Weathering takes 3-12 months of wet dry cycles

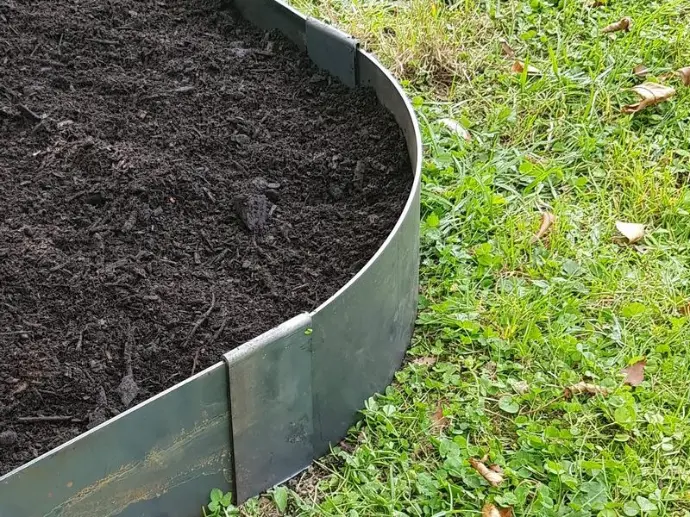

Close up of join
Maintenance free tidy edges

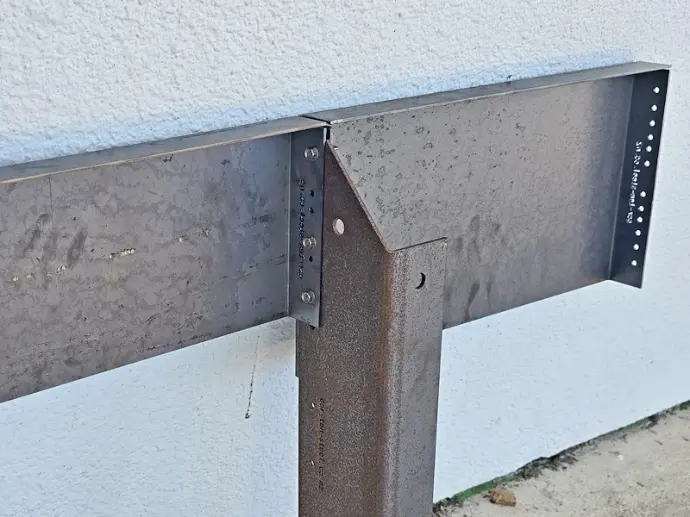

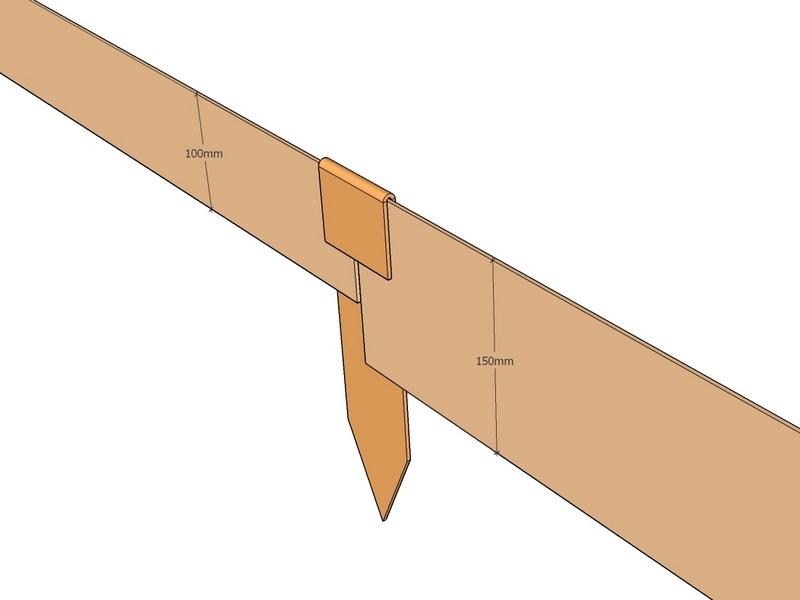

Different Height
Joining different height edging behind peg joiner

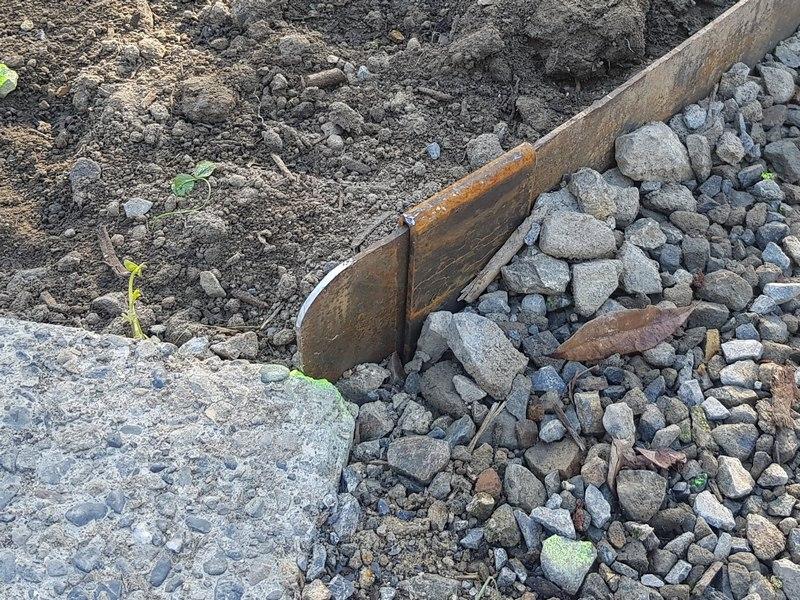

Rounding off End
Using an angle grinder to round the corten end

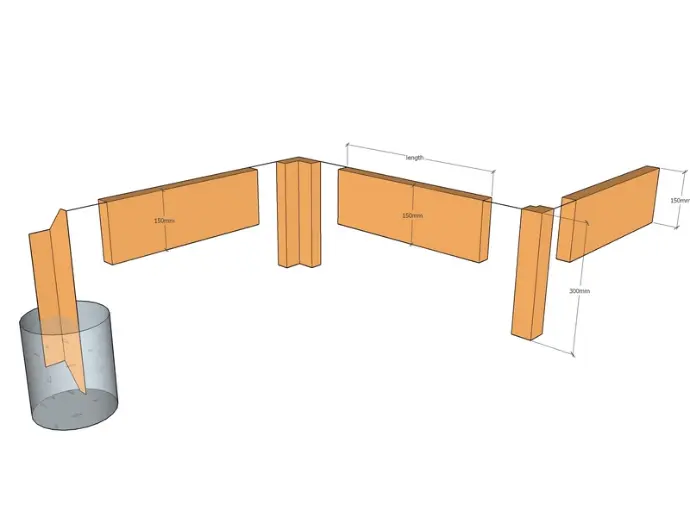

Step up string lines for height and direction
To get the best results check the assembled edging, before setting the posts in concrete
Edging peg joint
Increased strength by burying up to 1/3 of edging

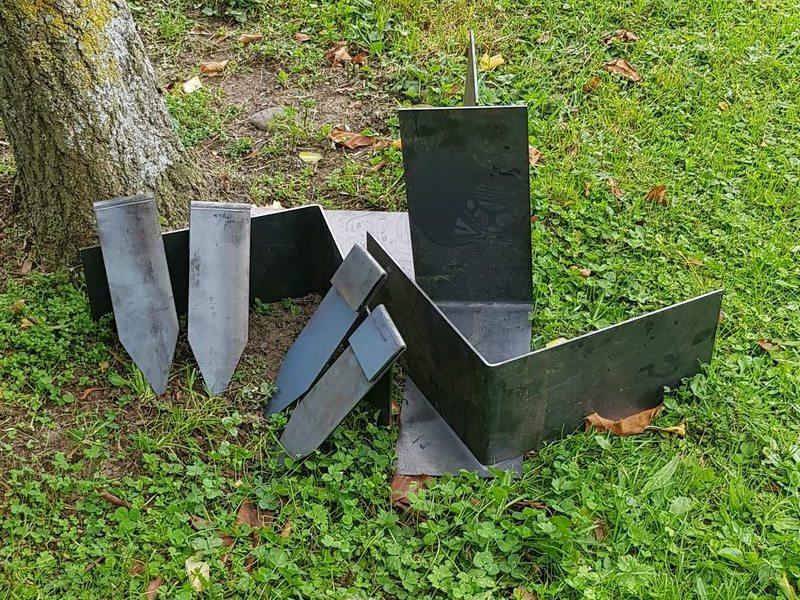

Pre-made corners
We have both round and square corner pieces
Pre-made corners quarter section
Corten steel is a high tensile steel, however our DIY friendly curves in solid 3mm and 6mm thick edging, make tight radii simple to install.
Preformed Curves and Corners
Full selection of curves and corner joiners available

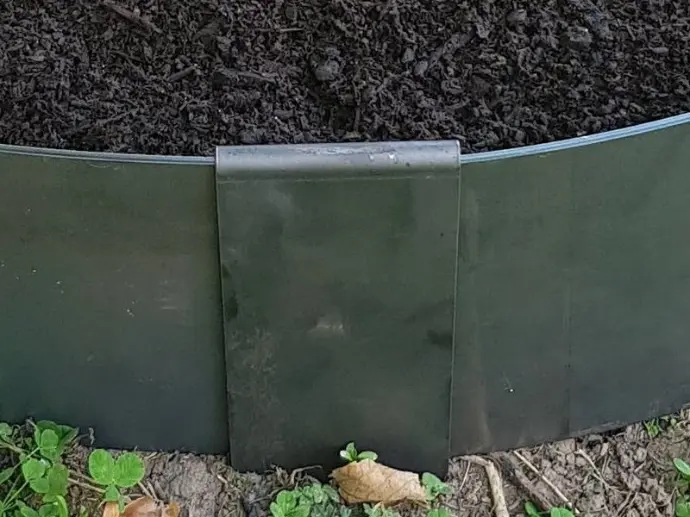

Peg fold fits snuggly over edging
The 3mm peg is designed to securely join the corten edge pieces. In softer soils you may need longer pegs
Install Flat Face pegs with a hammer
In summer soften the soil the night before, to make it easier to drive the pegs in.
Do not hammer Flat top edging in, set support posts in holes filled with concrete
String line and profile set up
Coating buried corten with bitumen paint will increase the lifespan
Install corten 1st
Then cut paving to fit. Place concrete paths after edging is installed
Complex shapes no problem
This shape uses the following parts. 90deg corner, 45deg corner, quarter circle, straight lengths and joining pegs
Eighth pre-made curved section
This layout uses, 90deg, 45deg, pre-made eighth curve, straight lengths and joiner pegs

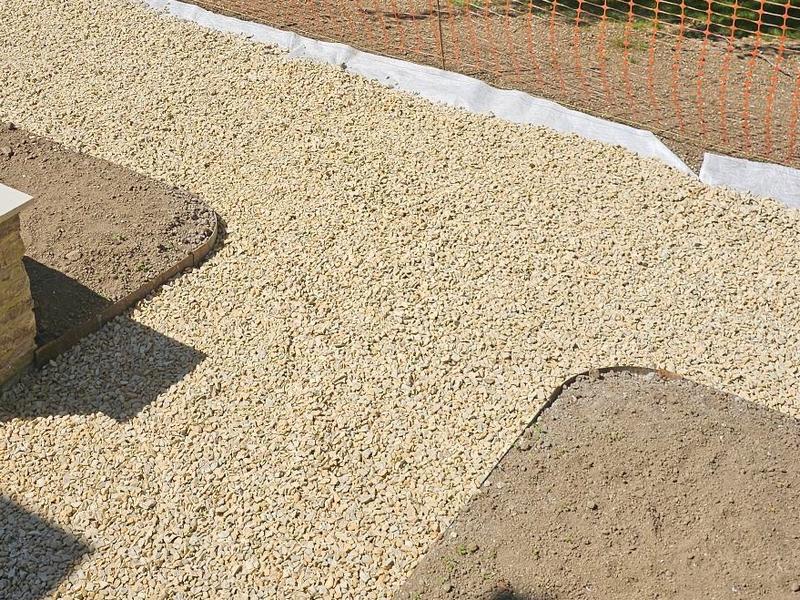

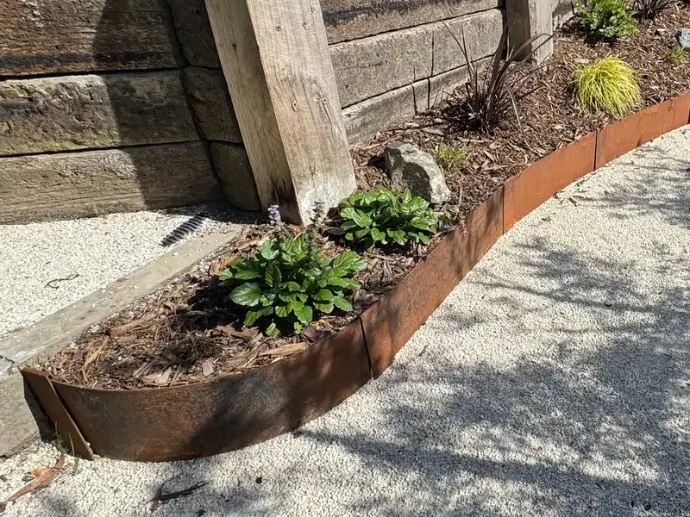

Rounded corners
Quarter segments come in various radii from 300mm up to 1200mm
Using temporary stakes
Once the paving and gardens are in place, the stakes can be removed
Concrete around the peg base
For some projects using longer pegs and a small amount of concrete around the peg base, supports the edging prior to the paving and soil being placed
[email protected]
Please email me any, sketches, plans, and other information you may have,
I can then get back to you with suggested corten
4 quarters make a full circle
Quarter segments come in various radii from 300mm up to 1200mm. Ideal for around existing trees
Concrete around the peg base
For some projects using longer pegs and a small amount of concrete around the peg base, supports the edging prior to the paving and soil being placed
[email protected]
Please email me any, sketches, plans, and other information you may have,
I can then get back to you with suggested corten

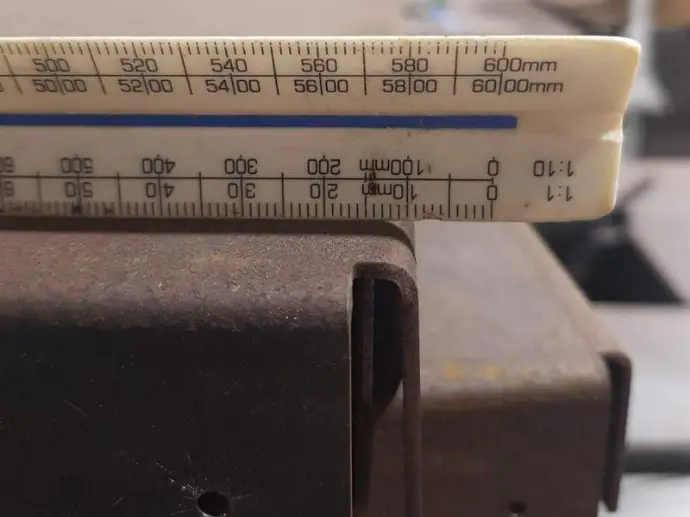

radius on top
Child and pet friendly edging has a smooth rolled edge on the straight sections
